Stepper Products

Stepper product line includes High-Torque Stepper Motors, "Legacy" Round-Bodied Stepper Motors, Spur Gear Stepper Motors, Planetary
Gear Stepper Motors, Permanent Magnet (PM) Stepper Motors, Permanent Magnet (PM) Stepper Gear motors, Linear Actuator Stepper
Motors, and Specialty-Type Stepper Motors, such as IP65-Rated Stepper Motors and motors that integrate the motor, driver and/or controller,
all in one unit. The Stepper Motor product line ranges from the smallest 08Y series with 2.5 ounce-inches of torque, to the largest 42K
series, with up to 5,700 ounce-inches of torque! Along with its vast selection of Stepper Motors manufactures a large variety of Stepper Motor
Drivers, Indexers, Pulse Generators, and Programmable Controllers. The Stepper product offering includes many options in several levels
of sophistication, such as printed circuit boards, modular single-axis units, single-axis and multi-axis Driver Packs (packages that include
power supply and indexer or controller options, in fan-cooled enclosures), and integrated stepper motor-driver-controller packages
(driver/controller circuitry built into the motor assembly). Users appreciate the ease-of-use of the matched components of the Stepper Motor
Driver Packs and Integrated Motor/Driver/Controller units, while OEM customers appreciate the cost savings and flexibility of being able to
purchase sub-assemblies, easily incorporating them into their own control panels or machinery.

High Torque (Square)
Stepper Motors

IP65 Rated Sealed
Stepper Motors

Permanent Magnet
(PM) Stepper Motors

Standard (Round)
Stepper Motors

Stepper Motors with
Spur Gearboxes

•Torque: 2.5 to 5,700 Ounce-
Inches
•Sizes: NEMA 08, 11, 14, 15,
17, 23, 24, 34 and 42
•1.8 and 0.9 Degree, Square-
Bodied, High-Torque Stepper
Motors
•Up to Four Stack Lengths,
Several Windings in Each
Frame Size
•Four, Six or Eight Lead
Wires, Or Conduit Boxes
•Customization and Motor
Adders Available
•Drop-In Replacement for
Most Competitors, at Huge
Savings!

•Torque: 35 to 5,700 Ounce-
Inches
•Sizes: NEMA 17, 23, 34 and
•1.8-Degree, High-Torque
Stepper Motors
•Up to Four Stack Lengths,
Several Windings in Each
Frame Size
•Meets Splash-Proof
Requirements
•Made for Harsh or Humid
Environments
•Protective Shaft Seal for
Longer Life Cycle

•Torque: 1 to 23 Ounce-Inches
•Sizes: 15 to 57mm Diameter
•Cost-Effective, Brushless
Stepper Motors
•Customization and Motor
Adders Available
•Drop-In Replacement for
Most Competitors
•Low Prices, Huge Selection

•Torque: 40 to 1,575 Ounce-
Inches
•Sizes: NEMA 23, 34 and 42
•1.8 Degree, Round-Bodied,
"Legacy" Motors
•Up to Three Stack Lengths,
Several Windings in Each
Frame Size
•Six or Eight Lead Wires, Or
Conduit Boxes
•Specials and Motor Adders
Available
•Save on Drop-In Replacement
of Competitors

•Torque: Up to 3,500 Ounce-
Inches
•Sizes: NEMA 23 and 34
•Cost-Effective Stepper Motor
with Spur Gearbox
•Available Up to 12 Gear Ratios
•Customization is Available

Permanent Magnet
(PM) Stepper Motors
with Spur Gearboxes

Stepper Motors with
Planetary Gearboxes

Permanent Magnet
(PM) Captive Linear
Actuators

Permanent Magnet
(PM) Non-Captive
Linear Actuators

Hybrid Threaded
Shaft Linear Actuators

•Torque: 300 to 4000 g-cm of
Torque
•Sizes: 24 to 42mm Diameter
•PM Stepper Motor with
Integrated Gearbox
•Precise Motion at a Low Cost
•Customization is Available
•100 Piece Minimum Order
Requirement

•Torque: Up to 4,000 Ounce-
Inches
•Sizes: NEMA 11, 17 and 23
•Cost-Effective Stepper Motor
with Gearbox
•High-Torque in Compact
Package
•Offered in Five Stack Lengths
•Available in 14 Gear Ratios

•Linear Force: 2 to 22.2 lbs.
•Converts Rotary Motion to
Linear Motion
•Simple, Cost-Effective Design
•Four or Six-Lead Wire
Configurations
•Customization Is Available

•Linear Force: 2 to 22.2 lbs.
•Sizes: 20 to 57mm Diameter
•Converts Rotary Motion to
Linear Motion
•Simple, Cost-Effective Design
•Four or Six-Lead Wire
Configurations
•Customization Is Available

•Linear Force: 12.5 oz-in
•Sizes: NEMA 17
•Converts Rotary Motion to
Linear Motion
•Four-Lead Wire Configuration
•Customization Is Available

Hybrid Non-Captive
Linear Actuators

Stepper Motors with
Integrated Drivers

Stepper Motors with
Integrated Drivers and
Controllers

Stepper Drivers with
Programmable
Controllers

Stepper Drivers with
110VAC or 220VAC
Input

Stepper Drivers with
DC Input

Stepper Motors with
Integrated Drivers •Linear
Force: 40 to 279 lbs.
•Sizes: NEMA 11, 17, 23 and
34
•Converts Rotary Motion to
Linear Motion
•6 or 12 Inch Lead Screws,
with Several Pitches
•Four and Six-Lead Wire
Configurations
•Customization Is Available

•Torque: 31 to 1,700 Ounce-
Inches
•Sizes: NEMA 17, 23 and 34
•High-Torque, 1.8 Degree
Stepper Motors
•Over-Temperature and Short-
Circuit Protection
•Microstep Driver, Resolutions
up to 1,600spr
•Cable, Connector or Encoder
Adder Options
•Special Windings and Shaft
Modifications Available

•Torque: 31 to 425 Ounce-
Inches
•Sizes: NEMA 17 and 23
•High-Torque, 1.8 Degree
Stepper Motors
•Integrated Driver with Easy-to-
Use Controller
•Microstep Driver, Resolutions
up to 1,600spr
•Encoder Adder Options
•Special Windings and Shaft
Modifications Available
•Easy-to-Use, FREE Software
with Purchase

•Driver Type: Drivers/Controllers
•Current Range: 0.5 to 10.0 Amps
•Bilevel and Microstep Drivers
•Modular and Enclosed
Packaging Styles
•Single-Axis, Daisy-Chained for
Multi-Axes
•Driver, Controller and Power
Supply Packages
•Easy-to-Use, FREE Software with
Purchase

•Driver Type: 110VAC or
220VAC Input
•Current Range: 0.5 to 12.5
Amps
•Bilevel, Microstep and Line-
Powered Drivers
•PCB, Modular and Enclosed
Packaging Styles
•Offered as One to Four-Axis
Units
•Driver, Power Supply in Fan-
Cooled Packages

•Driver Type: DC Input
•Current Range: 0.2 to 12.5
Amps
•High-Performance, Bilevel
and Microstep
•Also Available are L/R and
Legacy Drivers
•PCB, Modular/Enclosed
Packaging Styles
•Offered as Single-Axis Units
•Requires DC Power Supply

Stepper Drivers with
Transformer (AC) Input

Pulse Generators

Preset Indexers

Programmable
Controllers

Stepper Drivers with
Preset Indexers

Stepper Drivers with
Pulse Generators

•Driver Type: Transformer - AC
Input
•Current Range: 1.0 to 10.0
Amps
•Bilevel and Microstep Drivers
•PCB, Modular/Enclosed
Packaging Styles
•Offered as Single-Axis Units
•Requires Transformer

•Linear Ramping Pulse
Generator with Bracket
•Compatible with Anaheim
Automation Drivers
•Adjustable Base and Max
Speeds
•2 Speed Ranges, Up to
20,000 pulses/second
•Control of Acceleration and
Deceleration

•Perfect for Repetitive Motion
Requirements
•Compatible with Anaheim
Automation Drivers
•Internal Index Count Switches
•Inputs for External Count
Modules
•Pulse Rates up to 14,792
Pulses Per Second
•Index on the Fly Capability

•Cost-Effective Motion System
•Compatible with Anaheim
Automation Drivers
•Command Sets: 18 or 40 Simple
Commands
•Can Daisy-Chain to Control up to
99 Axes
•Easy-to-Use, FREE Software with
Purchase
•Compact and Rugged Modular
Packaging

•Driver Type: Drivers/ Preset
Indexers
•Current Range: 0.5 to 12.5
Amps
•High-Performance, Bilevel
and Microstep Drivers
•Offered as One or Two-Axis
Units
•Counter Modules Available
Separately
•Driver, Indexer and Power
Supply Packages

•Driver Type: Drivers/Pulse
Generators
•Current Range: 0.5 to 10.0
Amps
•Bilevel and Microstep Drivers
•PCB, Modular/Enclosed
Packaging Styles
•Offered as Single-Axis Units
•Driver, Pulse Generator and
Power Supply Packages

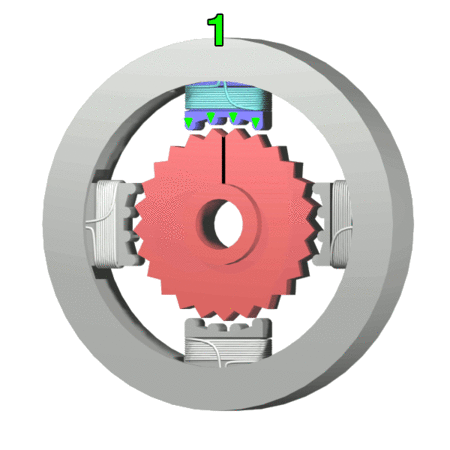

Inside of a
Stepper Motor

Stepper Motor
"How does it Work?"
Click here to see the Video
